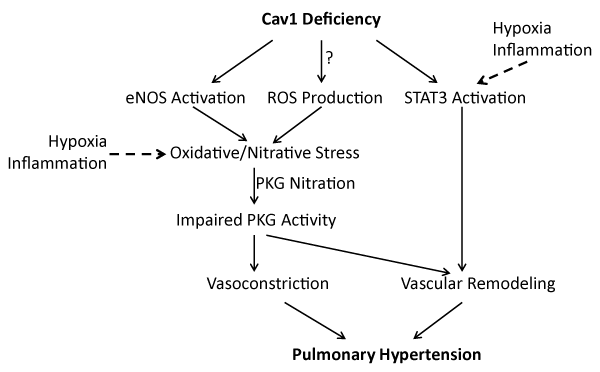

| Figure 1: Cav1 deficiency induces pulmonary hypertension. In Cav1-/- mice, Cav1 deficiency induces eNOS activation and ROS production to form
      peroxynitrite which modifies PKG through tyrosine nitration. PKG nitration
      impairs PKG activity and thereby induces pulmonary vasoconstriction and
      vascular remodeling leading to development of pulmonary hypertension.
      Increased eNOS activity and PKG nitration concomitant with decreased
      Cav1expression are observed in lung tissues from IPAH patients. Tissue
      hypoxia and inflammation may augment oxidative/nitrative stress and thereby
      PKG nitration. In addition, Cav1 deficiency activates STAT3. Tissue hypoxia
      and inflammation also results in STAT3 activation. Activated STAT3 induces
    vascular remodeling and thereby contributes to the pathogenesis of PH. |
