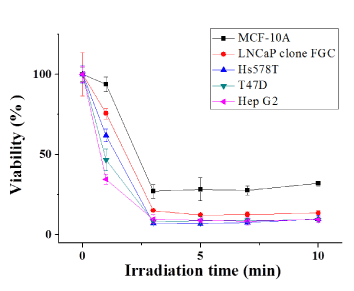

Figure 7: Examination of cell survival rate of different model cells using the current Glu-Fe3O4 targeted photothermal hyperthermia approach. The model cells (~4000 cells, 0.1 mL) mammary gland/breast cells MCF-10A, prostate cancer cells LNCaP clone FGC, breast cancer cells (Hs578T and T-47D),and hepatocellular cancer cells Hep G2 were incubated individually with the Glu- Fe3O4 MNPs (0.1 g) (0.1 mL, 1 mg mL-1) at 37oC for 12 h followed by rinse with medium. The original concentration of the Glu-Fe3O4 was. The resultant cells were irradiated with an NIR laser (808 nm) for different times. MTT assays were performed to estimate the cell survival rate. Three replicated were conducted.
