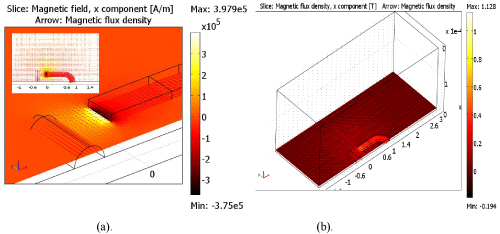

Figure 3: Numerical simulation of the generated magnetic field and flux for the proposed configuration. (a). The magnetic field H in units of A/m with a cross section inset. The distance units are in 0.1mm (every 1 equals 100 µm). (b). The magnetic flux B in units of Tesla.
