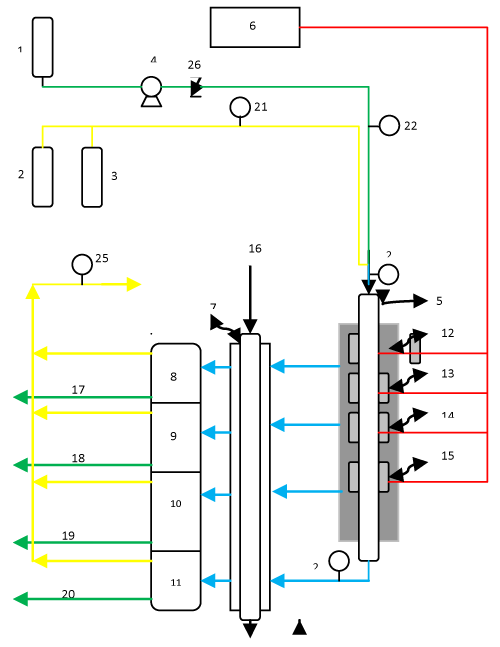

Serial number |
Description |
Specification |
1 |
Feed tank |
Box, 20 litter |
2 |
hydrogen bottle |
150 bar |
3 |
Nitrogen bottle |
50 bar |
4 |
Pump |
Dosapro Milton Roy / Italy, Max flow = 1.27 litter/hr, Max. pressure = 20 bar |
5 |
Trickle bed reactor |
Stainless steel 316 1.6 cm * 73 cm |
6 |
Control box |
Control box |
7 |
Heat exchanger (Cooler) |
Shell and tube (Four tubes) |
8, 9, 10, and 11 |
Separator |
Stainless steel |
12,13,14, and 15 |
Reactor heating jacket |
Electrical coils |
16 |
Cooling water |
20°C |
17, 18, 19, and 20 |
Sample points |
- |
21 |
Gas flow meter |
Yamamoto 0-6 litter/min |
22 |
Liquid flow meter |
Colongo Monzese 0-3.2litter/hr |
23 |
Pressure gauge |
Neu-tec / Italy 0-35 bar |
24 |
Pressure gauge |
Neu-tec / Italy 0-35 bar |
25 |
Off gas flow meter |
Yamamoto 0-6 litter/min |
26 |
Check valve |
TORK , T-GH101 0-50 bar |
