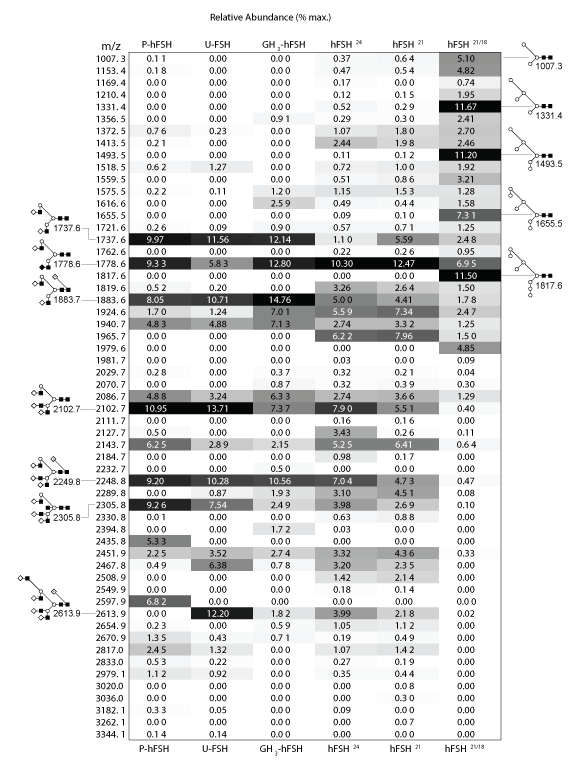

Figure 9: Heat map comparing relative abundances of glycan core families for all six hFSH preparations. Glycan ion m/z values are listed in increasing order and relative abundance in percentage reported for each family. Gray scale used to highlight the abundance data. Structure diagrams shown for the more abundant families.
