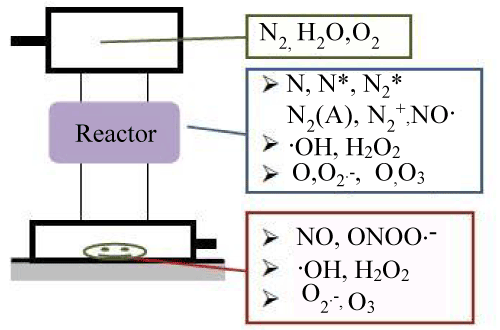

Figure 17:
Speculated mechanism of formation of superoxide anion radical (O
2
▪-) in the reactor O
2
▪- produced in the reactor migrates to the treatment location and reacts with NO▪, producing ONOO▪- just before reaching the BI (Figures 18 and 19).
