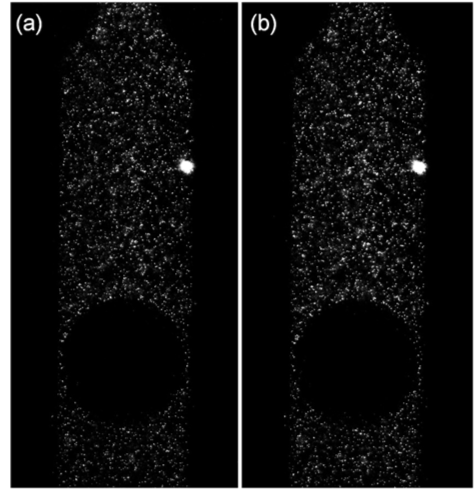

Figure 3:
Fluorescent particles illuminated by the double pulsed laser in a continuous water phase that contains a previously formed oil droplet with Q
o
=1 μl/min and Q
w
=4 μl/min, (a) base image at time t, (b) cross image at t + 4t.
