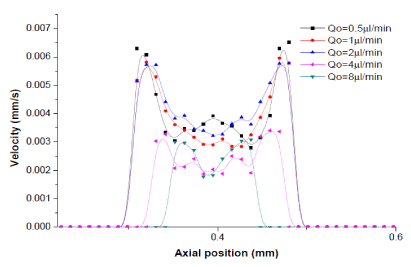

Figure 9: Velocity profiles across water droplets dispersed in a continuous oil phase for range of flow rates Qo=0.5 μl/min, 1 μl/min, 2 μl/min, 4 μl/min and 8 μl/min with a constant dispersed water phase flow rate of Qw=1 μl/min. The profiles are shown in mid position of the droplet perpendicular to the flow direction.
