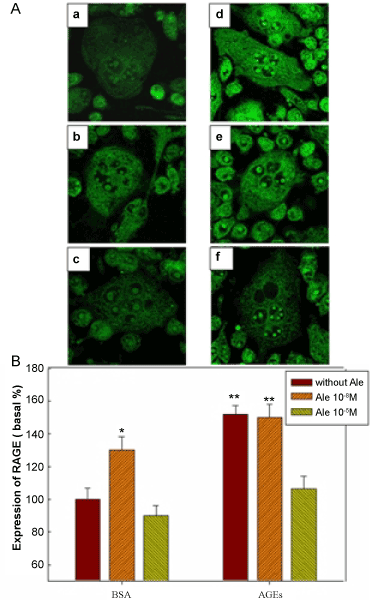

Figure 5: AGEs and/or alendronate modulate RAGE expression in osteoclasts. (A) UMR-106 osteoblastic cells and Raw 264.7 macrophages were co-cultured for 4 days until formation of multinucleated cells. They were then incubated for an additional 4 days with 100 μg/ml BSA (a, b and c) or 100 μg/ml AGEs (d, e and f), in the presence or absence of 10-8M alendronate (b and e) or 10-5M alendronate (c and f). Expression of RAGE was evidenced by indirect immunofluorescence, as described in Materials and methods. (B) Whole-cell RAGE-associated immunofluorescence was quantified. Results are expressed as % of basal (BSA alone), and are shown as the mean ± S.E.M. (* p<0.05, ** p<0.001 versus BSA alone)
