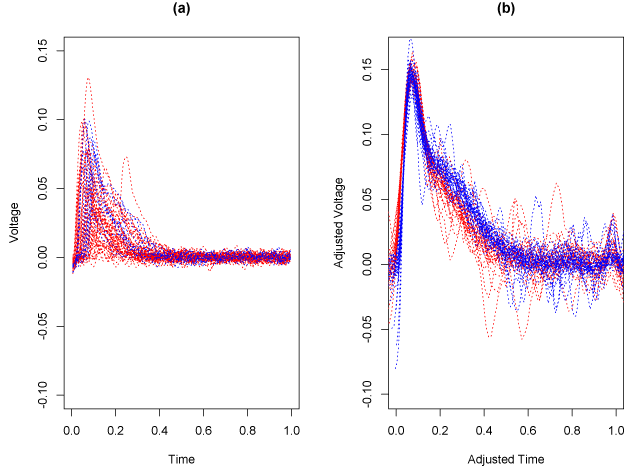

Figure 6: Application to synaptic transmission data (a) The synaptic transmission data from Figure 1a, color coded into the groups identified by the Mixture of Self-Modeling regressions algorithm (a function was classified in a group if more than 50 % of the MCMC iterations placed it in that group). These groups do not appear to separate by peak amplitude, latency, or other commonly used functionals. (b) The synaptic transmission data from Figure 1b, aligned and color coded for the groups identified by the Mixture of Self-Modeling regressions model. The distinction between the two groups appears to be in the rate of increase in the rise and the rate of decrease in the descent. Functions in group 1 (red) have a faster rise and slower descent, while functions in group 2 (blue) have a slower rise and faster descent.
