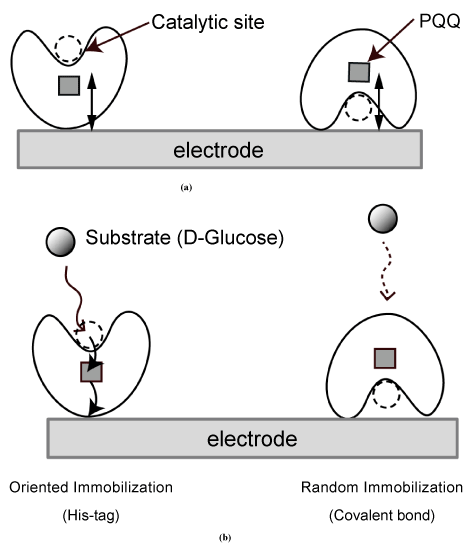

Figure 5: Schematic illustration of electron-transfer process on the highly oriented or randomly oriented enzyme layer between PQQ-GDH and electrode (a) Direct electron transfer of PQQ (b) Electrochemical catalytic reaction. Orientation of the enzyme does not affect the electron transfer through the PQQ (a). However, the enzymatic reaction is inhibited if the catalytic site was located on the electrode surface (b).
