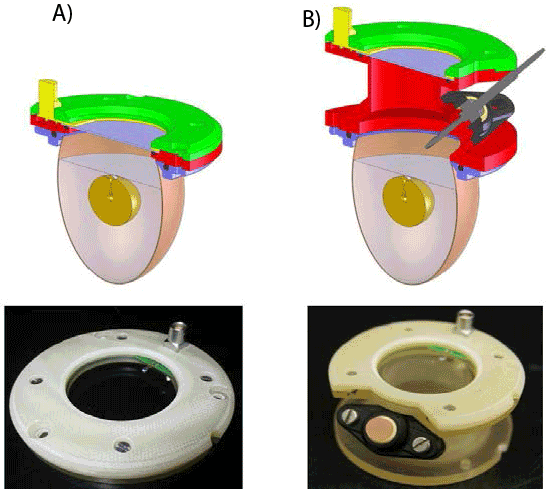

 Shown are the documentation lid (A) and the manipulation lid (B) as
construction scheme (top) and realized (bottom). The ring that connects the
eggshell and the lids is glued to the shell (blue). The lower parts of the lids (red)
hold the ITO coated glass window (light blue) on the upper side. Between the
glass window and the upper parts of the lids (green) the printed circuit board
(yellow) which holds the temperature sensor is situated. In the manipulation lid
a schematic manipulator positioned in the ball joint (black) is illustrated (grey). |
