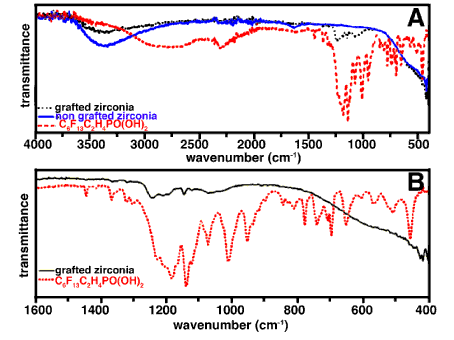

Figure 5: ATR FTIR spectra of the grafting agent (red dash), the grafted zirconia (black dots) and non grafted zirconia (blue line), A) in the 4000- 400 cm-1 range and B) an enlarged section in the 1600-400 cm-1 range.
