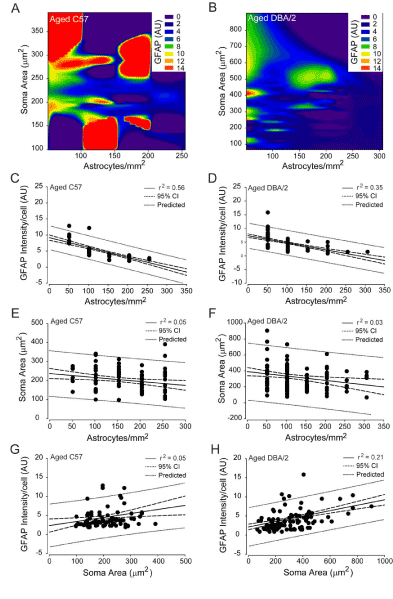

Figure 7: Density, hypertrophy and GFAP expression for spatially-coincident astrocytes are reliably predictable in aged C57 and aged DBA/2 retina. (A and B) Contour plot depicting the relationships between mean GFAP intensity/cell (color bar; arbitrary units), astrocyte density (x-axis; astrocytes/mm2) and soma area (y-axis; μm2) in aged C57 (A) and aged DBA/2 (B) retina. (C) Regression graph of the negative correlation between astrocyte density and mean GFAP expression/cell in aged C57 retina plotted as astrocytes/mm2 (x-axis) versus arbitrary units of intensity (y-axis). (D) Regression graph of the negative correlation between astrocyte density and mean GFAP expression/cell in aged DBA/2 retina plotted as astrocytes/mm2 (x-axis) versus arbitrary units of intensity (y-axis). (E) Regression graph of the negative correlation between astrocyte density and soma area in aged C57 retina plotted as astrocytes/mm2 (x-axis) versus soma area (μm2; y-axis). (F) Regression graph of the negative correlation between astrocyte density and soma area in aged DBA/2 retina plotted as astrocytes/mm2 (x-axis) versus soma area (μm2; y-axis). (G) Regression graph of the positive correlation between soma area and mean GFAP intensity/cell in aged C57 retina plotted as soma area (μm2; sxaxis) versus arbitrary units of intensity (y-axis). (H) Regression graph of the positive correlation between soma area and mean GFAP intensity/cell in aged DBA/2 retina plotted as soma area (μm2; sxaxis) versus arbitrary units of intensity (y-axis). For all graphs, solid lines indicate regression line based on r2 value. Dashed lines indicate the 95% confidence interval. Dotted lines indicate predicted values based on r2 and 95% confidence.
