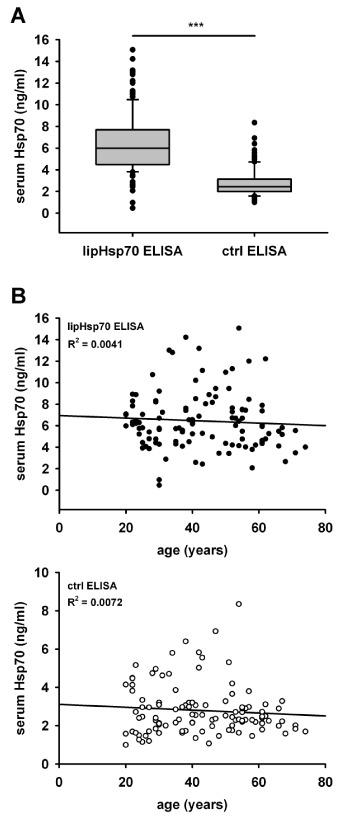

Figure 2: Hsp70 serum levels in healthy human volunteers determined with the lipHsp70 and control Hsp70 ELISA. (A) Serum samples were taken from 114 healthy human volunteers and Hsp70 levels were determined comparatively with the lipHsp70 and the control Hsp70 ELISA (ctrl ELISA). The lipHsp70 ELISA detected significantly higher Hsp70 concentrations (6.4 ± 2.7 ng/ml) in the serum than the ctrl ELISA(2.8 ± 1.3 ng/ml). Lines inside the box plots show the median value, upper and lower boundaries indicate the 25th and the 75th percentile, whiskers indicate the 10th and the 90th percentile, respectively. ***p<0.001 (Mann-Whitney Rank Sum Test).(B) The Hsp70 serum levels determined with the lipHsp70 (upper panel) and the control ELISA (lower panel) showed no correlation with the age of the donors.
