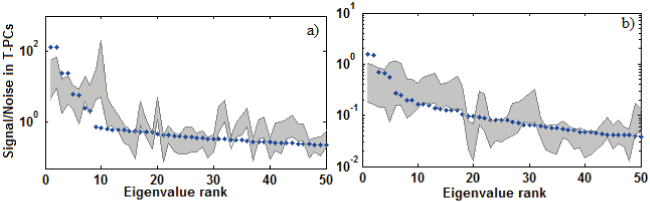

Figure 6: Results from Monte Carlo test applied to 8-day averaged SST and CHL-a data against first order autoregressive red noise AR (1). The grey area indicates the red noise confidence interval (CI) limited by the 95th (upper end) and 5th (lower end) percentiles based on 1000 Monte Carlo simulations. Blue dots show the eigenvalues from the data. The first two pairs of eigenvalues of SST are significant (outside of red noise CI) while only the first pair of eigenvalues of CHL-a lies outside of this CI. |
