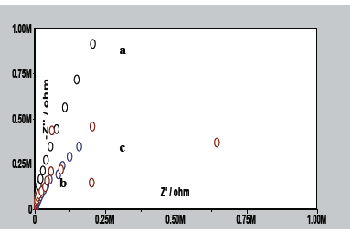

Figure 5: Electrochemical impedance spectra (EIS) for (a) carboxymethyldextran modified gold chip (b) modified gold chip immobilized with BoNT/A and (c) BoNT/A antigen interaction with immobilized antibody. Concentration: 4.5 fM, temperature: 25°C and pH: 7.5.
