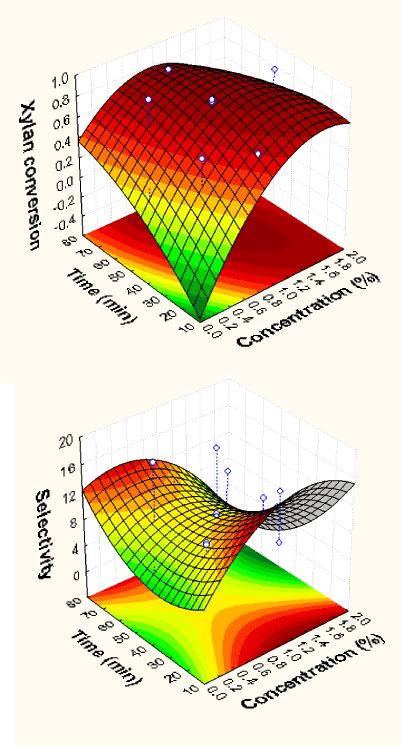

Figure 3: Response surfaces and contour plots of modeled xylan conversion to xylose (top) and hydrolysis selectivity (bottom) as a function of reaction time (t, min) and acid concentration (C, %) at fixed reaction temperature of 140�C set as a central point.
