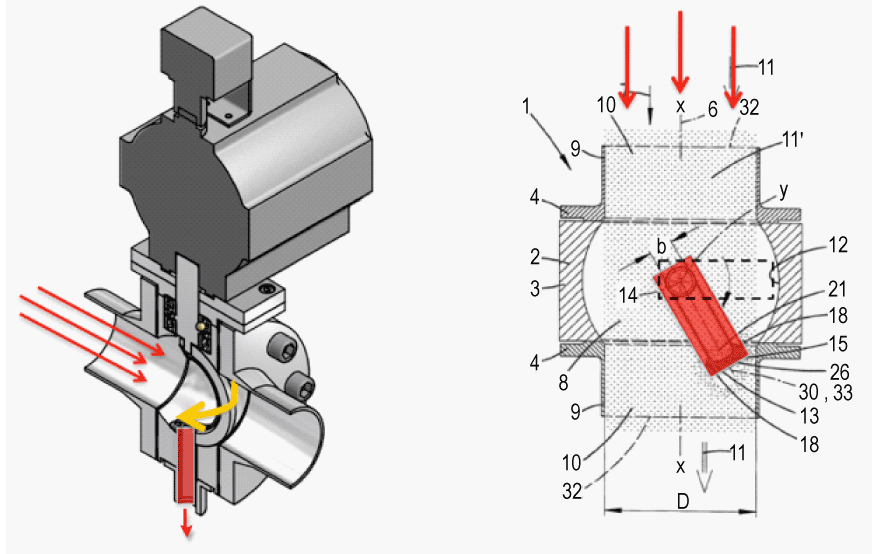

Figure 4: Schematic overview of the EF-sampler. Left figure showing side view illustrating material flow direction, rotational movement of cutter arm and recovery of extracted material through outlet chute. Right figure shows top view of sampler, highlighting the rotational movement of the sampling arm, ducted material flow direction (top arrows) and parking position of the sampling arm (dashed line). |
