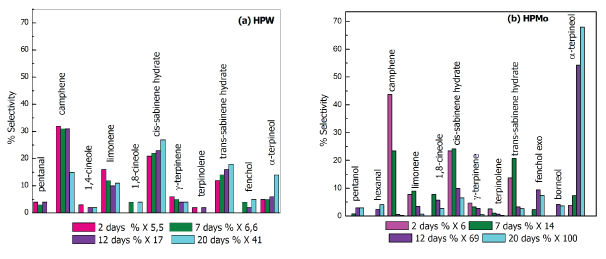

Figure 3:
% selectivity of reaction products, a) HPW and b)HPMo. Reaction conditions: 1 mL α-pinene, 5 mL of water, 22 mL of acetone, 2.04 × 10
-4
mol HPW or HPMo, T=30°C, without agitation and inert atmosphere.
