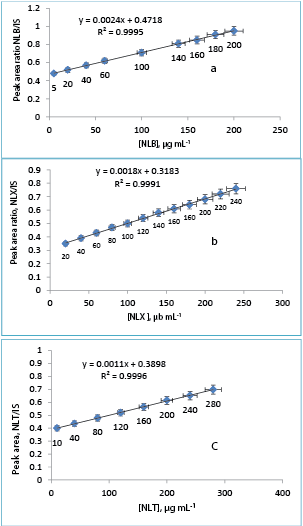

Figure 7: Typical calibration graphs of the investigated drugs (a) NLB, (b) NLXand (c) NLT using CZE method under the optimum conditions: running buffer;20 mmol L-1 acetate buffer; injection 70 mbar for 6 s; separation voltage 15 kV;capillary temperature 25°C and DAD detection at 230 nm.
