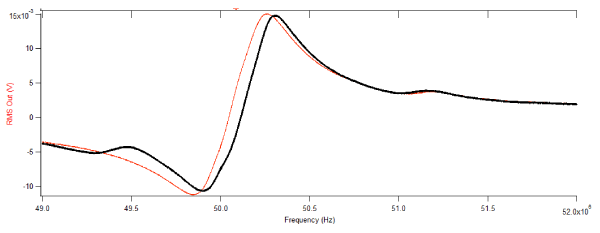

Figure 3: Frequency sweeps of an antibody-functionalized CMUT sensorbefore capture of antigen (black curve) and after binding of antigen (red curve). The resonant frequency decreased by 80 kHz upon capture of antigen onto the antibody-functionalized sensor surface corresponding to a mass 300 pg of antigen/sensor. |
