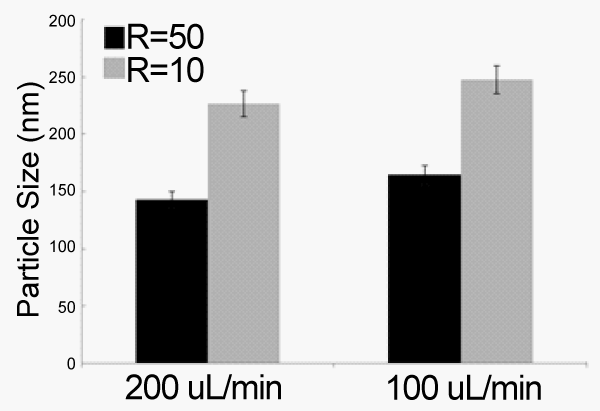

Figure 4: Histogram showing the effect of water flow (Qwater) combined with flow ratio R (QWATER/QRIF) on the rifampicin particle sizes. The water flows (Qwater) used in our experiments do not provide significant differences in particle sizes (around 50 nm). The ratio between water and rifampicin flow, combined with rifampicin initial concentration causes a relevant influence on the particle sizes.
