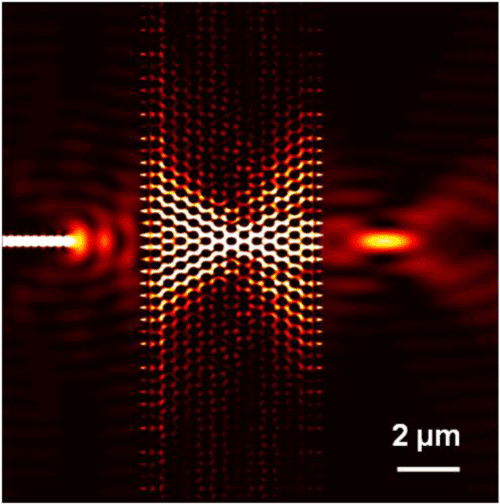

Figure 2: 2D FDTD simulation of the PC based flat lens described in Figure 1. The field amplitude for TE polarization is plotted under steady-state conditions. Light is injected from a 400 nm wide cut strip waveguide to mimic a “quasi” point source.
