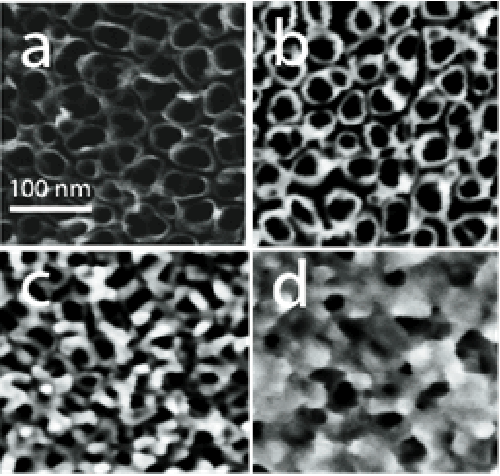

(a) Raw nT-TiO2 surface. (b) CaP deposition after 500 potential pulses (PP) (c) 1000 PP (d) 3000 PP.
CaP grows on the tube edges. For high coverage ratios, the CaP layer is continuous and anchored on the tube edges.
|
| Figure 2: SEM images (5.0 KeV) of nT-TiO2 surfaces taken before and after
CaP pulsed electrodeposition. (a) Raw nT-TiO2 surface. (b) CaP deposition after 500 potential pulses (PP) (c) 1000 PP (d) 3000 PP. CaP grows on the tube edges. For high coverage ratios, the CaP layer is continuous and anchored on the tube edges. |
