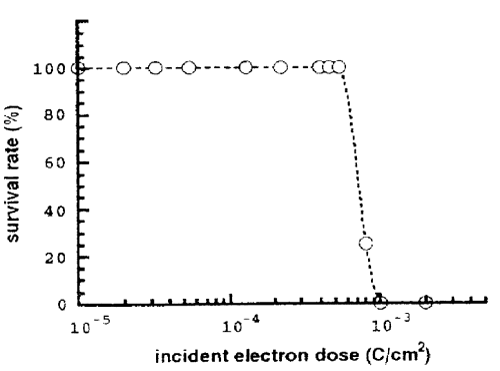

Figure 6: Relation between the total incident electron dose and the survival rate of muscle myofibrils, expressed as percentage of myofibrils, which contract in response to applied ATP, in the electron microscopic field [22]. Note that myofibrils no longer contract in response to ATP, if the electron dose exceeds 5 x 10-4 C/cm2.
