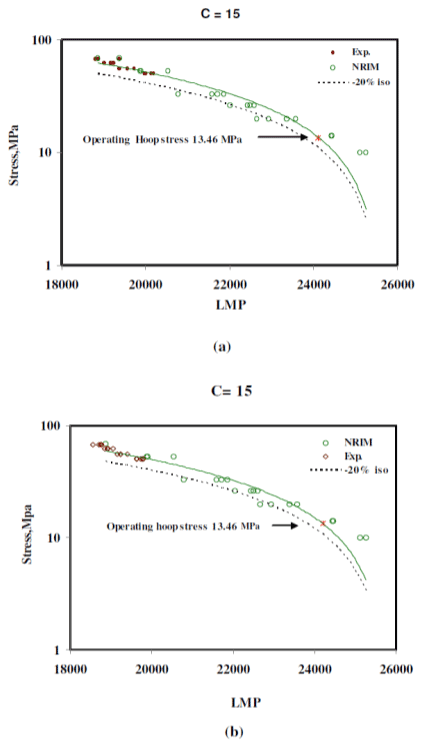

Figure 10:
Stress vs LMP Plot for 11 years service exposed Reformer tube materials (
a
) top and (
b
) bottom for comparison with –20% NRIM standard data line. All data fall on the NRIM virgin data line [25].
