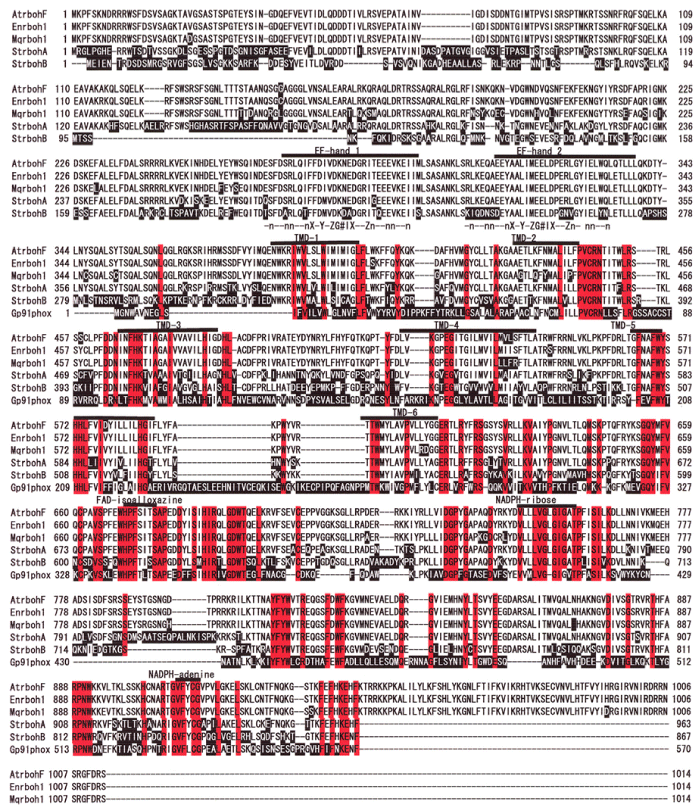

Figure 4: Predicted amino acid sequence alignment of cv. Eniwa rboh1 (Enrboh 1), Mayqueen rboh1 (Mqrboh 1), StrbohA and StrbohB. Amino acids different from each group are in black boxes. Six potential transmembrane-spanning domains (TMD1-6) are indicated by a bar. Dots under the sequences indicate amino acid residues involved in N-glycosylation. Dashes indicate gaps in sequence to allow for maximal alignment. The alignment was conducted with program DNASIS.
