Serial number

Description

Specification

1

Feed tank

Box, 20 litter

2

hydrogen bottle

150 bar

3

Nitrogen bottle

50 bar

4

Pump

Dosapro Milton Roy / Italy, Max flow = 1.27 litter/hr, Max. pressure = 20 bar

5

Trickle bed reactor

Stainless steel 316 1.6 cm * 73 cm

6

Control box

Control box

7

Heat exchanger (Cooler)

Shell and tube (Four tubes)
Stainless steel

8, 9, 10, and 11

Separator

Stainless steel

12,13,14, and 15

Reactor heating jacket

Electrical coils

16

Cooling water

20°C

17, 18, 19, and 20

Sample points

-

21

Gas flow meter

Yamamoto 0-6 litter/min

22

Liquid flow meter

Colongo Monzese 0-3.2litter/hr

23

Pressure gauge

Neu-tec / Italy 0-35 bar

24

Pressure gauge

Neu-tec / Italy 0-35 bar

25

Off gas flow meter

Yamamoto 0-6 litter/min

26

Check valve

TORK , T-GH101 0-50 bar

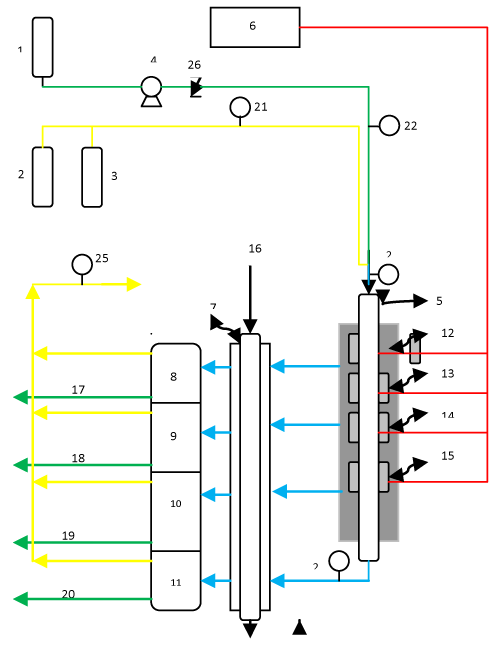

Figure 1: Experimental trickle bed reactor device.
