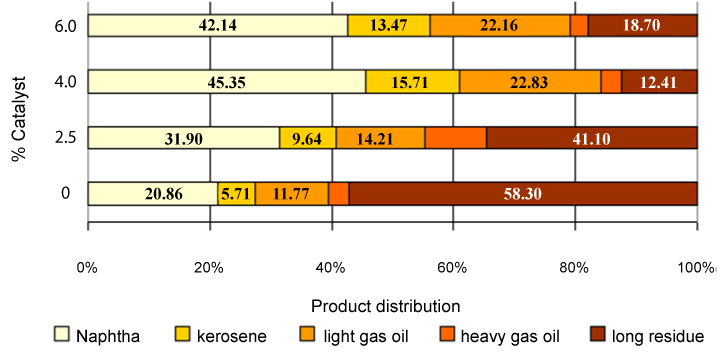

Figure 7:
Effect of mass of Fe/SiO
2
-Al
2
O
3
catalyst on product composition at 450°C of reaction temperature, 100 psi of initial hydrogen pressure, 5% Fe/ SiO
2
-Al
2
O
3
catalyst and 75 minutes of reaction time.
