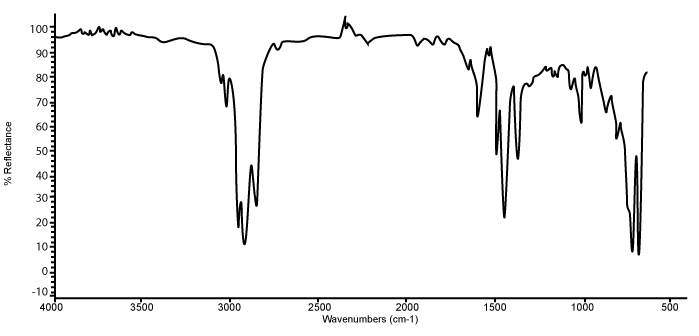

Figure 11:
FT-IR spectrum of oil product derived from catalytic reaction of 20 g of used lubricating oil, 450°C of reaction temperature, 100 psi of initial hydrogen pressure, 5% Fe/SiO
2
-Al
2
O
3
, 75 minutes of reaction time and 4.0% by wt. of catalyst.
