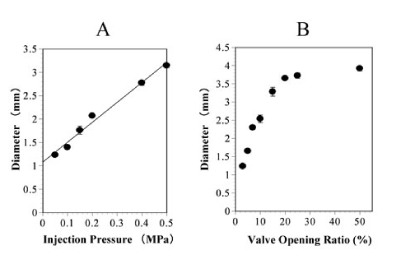

Figure 5: Control of dot size by injection pressure (A) under a fixed valveopening ratio (0.5%) and as a function of valve-opening ratio (B) under fixed injection pressure (0.1 MPa). Common fixed conditions: injection time, 0.5 s; concentration of ST-gelatin, 40 wt.%.
