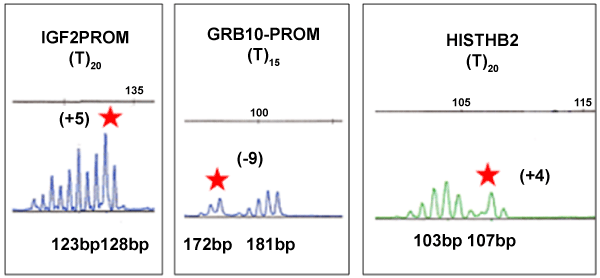

| Normal and mutated alleles are identified according to repeat motif shifts.
Mononucleotide markers (IGF2-PROM, GRB10-PROM, and HISTBH2) show
the corresponding normal allele, as well as the mutated allele that was shifted
greater than 3 or less than 3 repeats motifs. Mutated alleles are indicated with
a red star and the number of repeat motif shifts is in parentheses. (-) indicated
a loss of repeat units, while (+) indicated a gain of repeat units. Normal alleles
are shown next to their mutated alleles. Each set of peaks is identified by the
marker name and repeat motif (top row). Shown below each peak is the size
of each allele in base pair (bp). Markers were labeled with either 6-FAM (blue)
or HEX (green) fluorescent dyes. |
