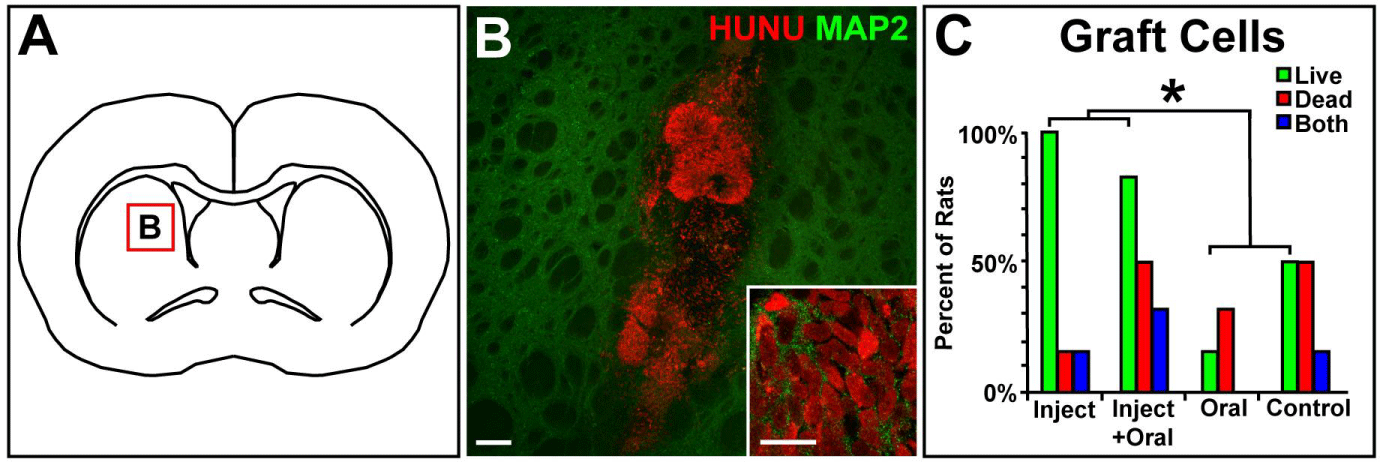

Figure 1: Panel A is an illustration of a coronal rat brain section at bregma, and the red box in the striatum indicates the location of grafts in panel B and the subsequent panels. Panel B shows live graft cells in rat striatum with the intact human nuclei (HUNU) of the graft cells labeled red and rat or human neuronal MAP2 labeled green (scale bar = 100 um, 10 um for the inset). Panel C shows the percent of rats in each experimental group with live graft cells (green bars), dead graft cell debris (red bars), or rats that had both live graft cells and dead graft cell debris (blue bars); * indicates p<0.05.
