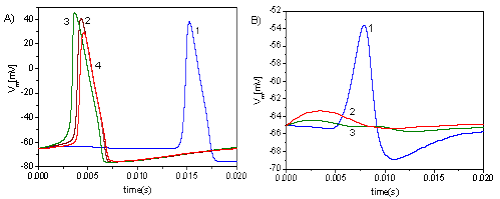

Figure 14: Time dependence of the action potential at various points in the axon. The excitation potential perturbation is δVm = 0 , ξ0 = 0.81, α = 0. A) Corresponds to points lying to the left of the center of the axon (where the action potential is excited), line 1 – corresponds to x=2cm, 2 –15.5cm, 3 – 17.5 cm, 4 – 20 cm. B) Corresponds to points lying to the right of the center of the axon.1- x=22.5cm, 2 –24.5cm, 3 – 30cm.
