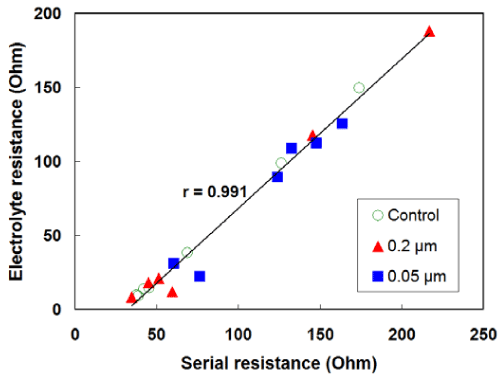

Figure 7: Strong linear relationship between serial resistance and resistance for electrolyte diffusion for all as-prepared and aged DSSCs. The solar cells were aged in light soaking (illumination of 100 mW cm−2) at 60°C. Electrolyte composition was 0.8M PMII/0.05M I2/0.5M NMBI in MPN.
