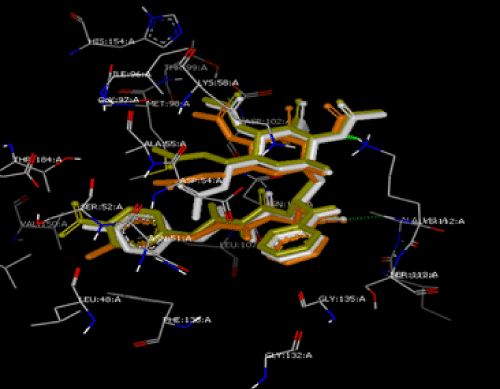

Figure 4: Visual representation for 8d: white, 8g: brownish green,,8c : orange Show different binding mode, sincethey didn’t fill the whole hydrophobic binding site like 8b did, but they still have 3 hydogen bonds but binds to different amino acids, CN group is binding ti ALA 111:A, and the C=o of the acetylated sugar binds to LYS 112A.
