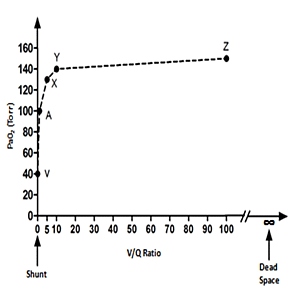

Figure 1: shows the skewed relationship between V/Q ratio and arterial oxygen tension (PaO2). The slopes of the segments VA, AX, XY, YZ are very different (see text). Note that PaO2 dramatically decreases as V/Q decreases in the narrow segment from 1 to 0, whereas it changes very little beyond V/Q > 10.
