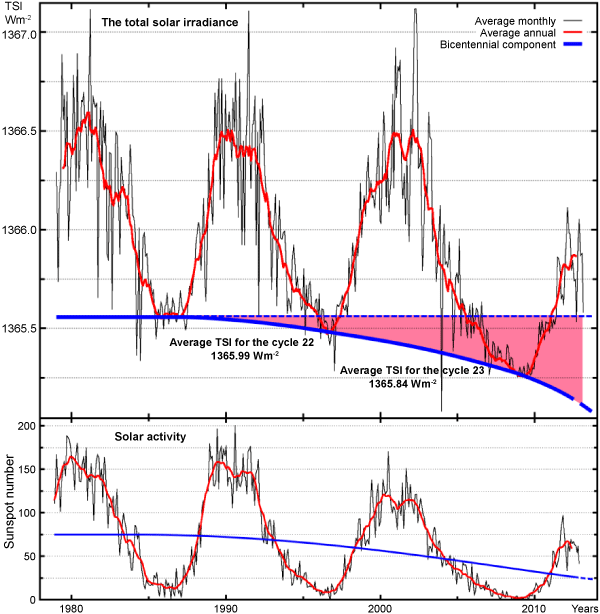

Figure 3:
Variations of both the solar activity based on the monthly data [27] and the total solar irradiance and deficit of the TSI since 1990 based on the daily data [21] between 1978 and December 4, 2012.
