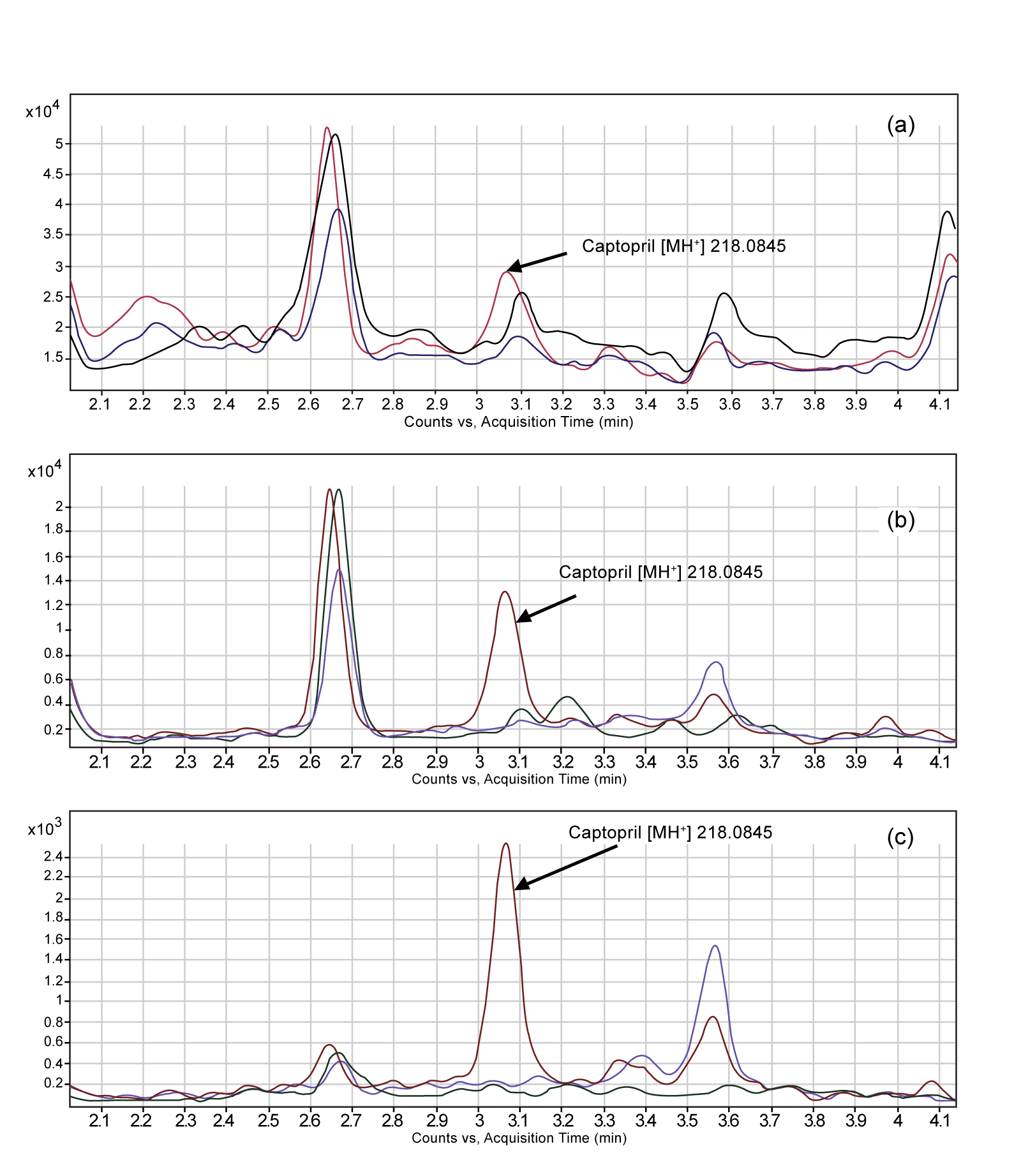

Figure 3: Demonstration of enhanced selectivity resulting from the use of narrow mass tolerance windows for 100ng/ml captopril DBS (red), blank DBS (blue), and 903 sampling card extract (black). EIC of the protonated captopril at m/z 218.0845 using mass tolerance filters of (a) 500ppm (b) 100ppm and (c) 1ppm.
