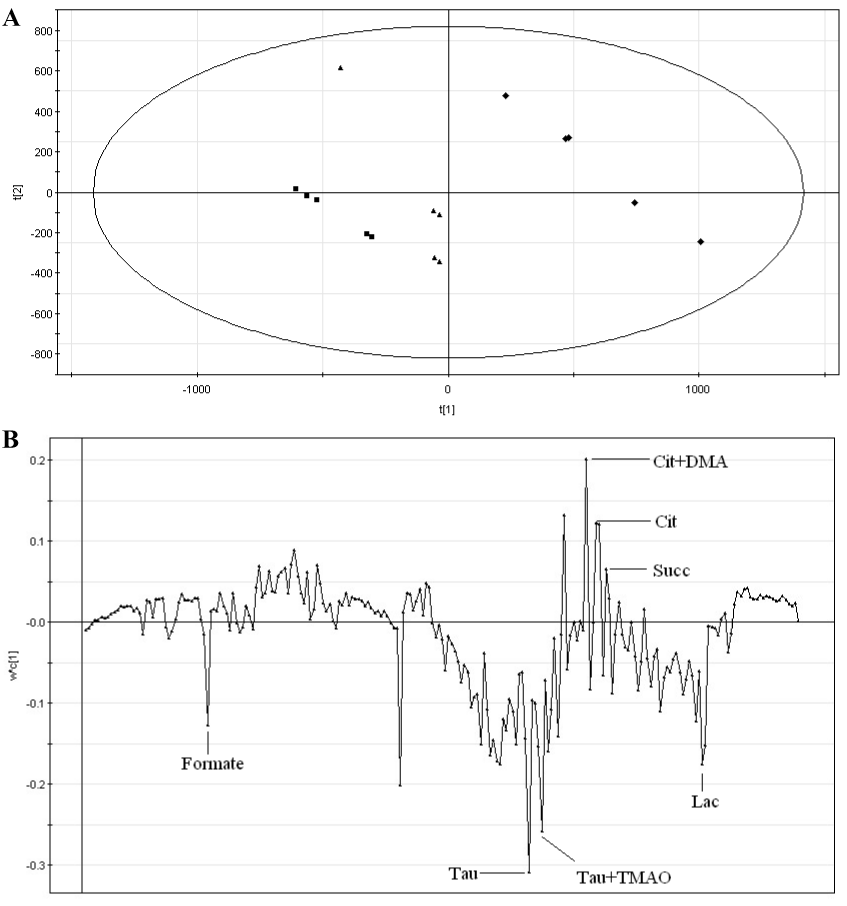

Figure 5: OSC-PLS scores (A) and loadings (B) plots from analysis of 1H NMR spectra of urine samples from model group. ■, on day 0 (n=5); ▲, on day 3 (n=5); ◆, on day 9 (n=5). (For first 2 LVs, R2X=0.504, R2Y=0.971, Q2=0.927). Ellipses represent means ± SD for the various groups.
