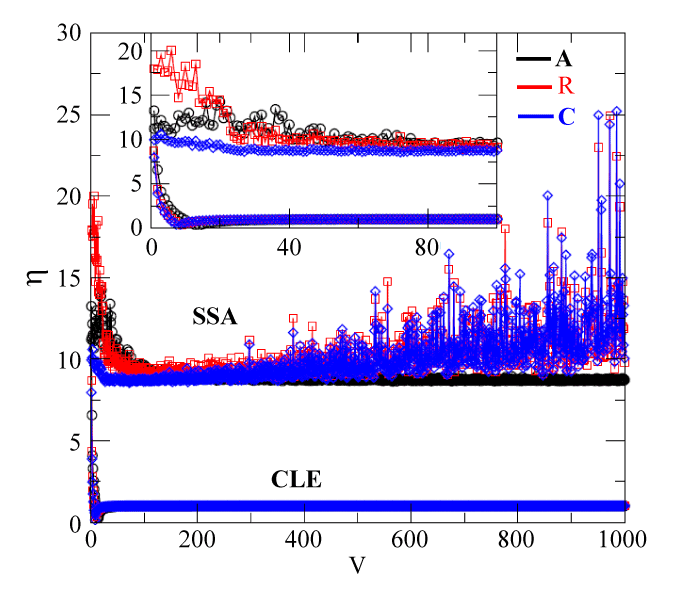

Figure 3:
The variation of noise parameter η as a function of V in genetic oscillator model calculated by using stochastic simulation algorithm indicated by SSA and using chemical Langevin equations indicated by CLE for A, R and C respectively.
