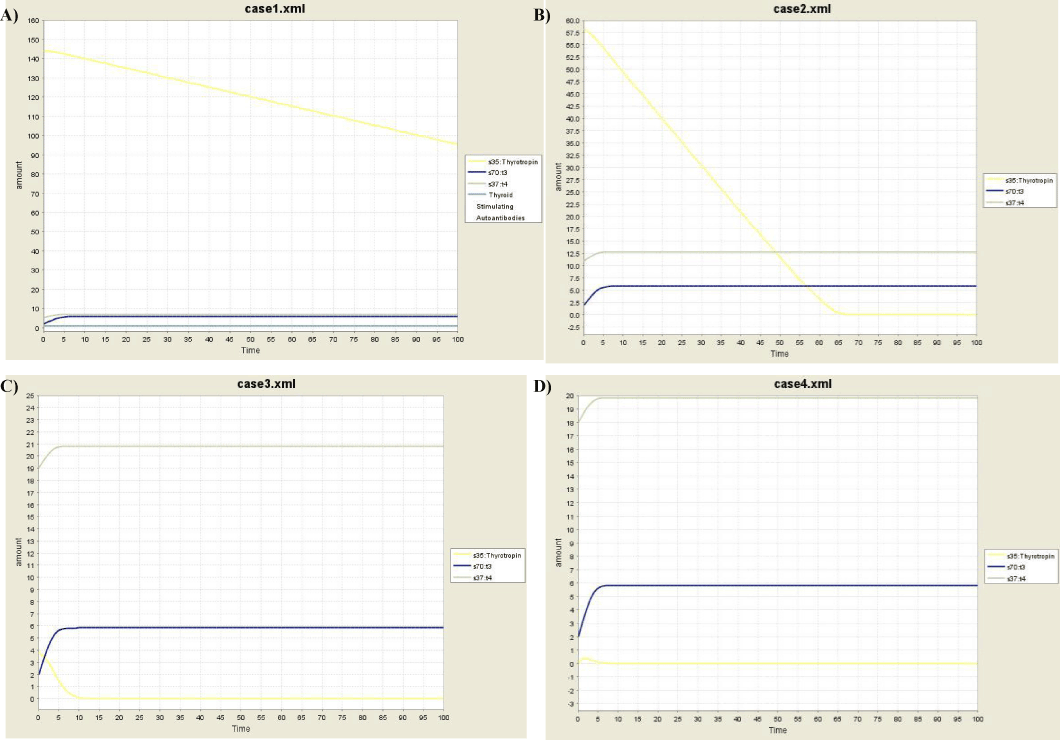

Figure 7:
(a), (b), (c) and (d) showing simulation study for Hypothyroid Grave Disease with Four patients, variation in concentrations of TSH, T3 and T4 with the time is shown in yellow, blue and grey color respectively.
