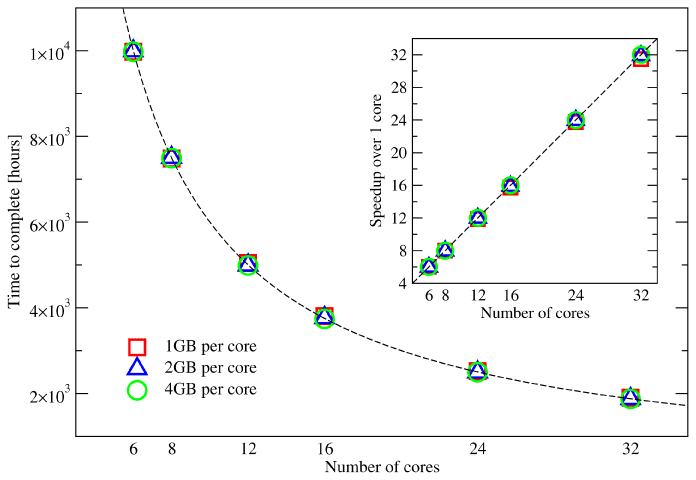

Figure 4: Time required for completing meta-threading against E. coli proteome. Completion time is estimated by a simulated job scheduling system for virtual machines equipped with 6, 8, 12, 16, 24 and 32 computing cores, and 1, 2 and 4 GB of RAM per core. Inset: speedup over 1 core for multi-core virtual systems. |
