with the
estimated parameter. Red dotted lines show the residuals. 100 observations
from partial observed Calcium oscillation model (ca) with T=20 for the
estimation of
using (2) with K={0,5,…,45}. Dynamics shown until T=20. |

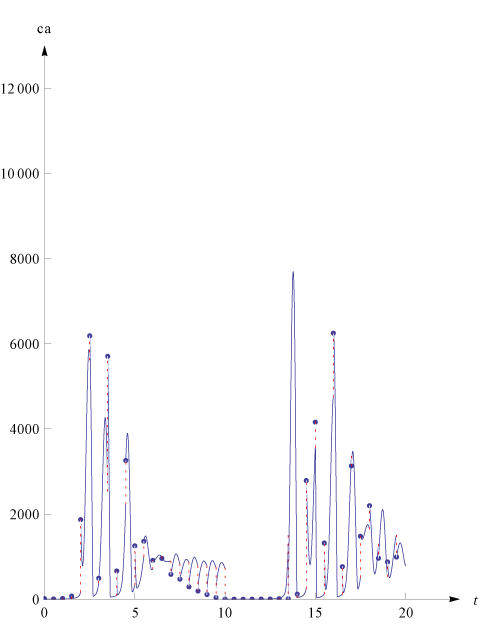

| Figure 7: Representation of partially observed Calcium oscillation
system’s dynamics, ca. The blue points are the data points. Blue curves are
the ODE dynamics for each time interval [ti-1,ti] namely with the
estimated parameter. Red dotted lines show the residuals. 100 observations
from partial observed Calcium oscillation model (ca) with T=20 for the
estimation of using (2) with K={0,5,…,45}. Dynamics shown until T=20. |
