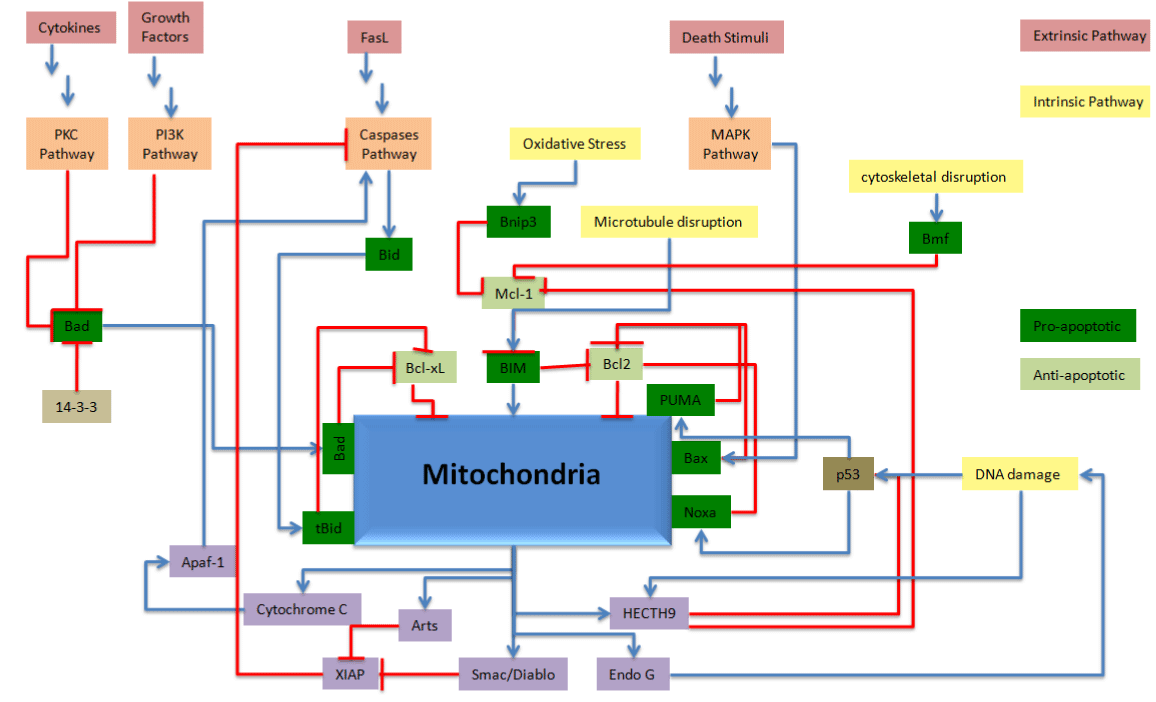

Figure 2: A detailed representation of both interactions intrinsic pathway (yellow) and extrinsic pathway (pink), regulating members of the Bcl-2 family (green) and mitochondrial Cyt c release. DNA damage, microtubules damage, or caspase activation are pro-apoptotic processes (dark green). Growth factors and cytokines are pro-survival processes (light green). |
