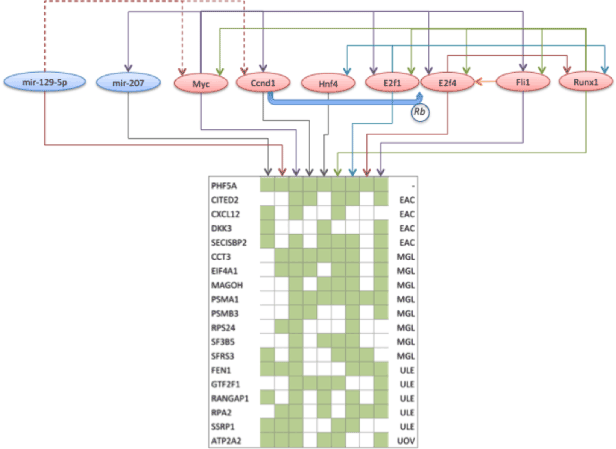

Figure 4: Regulation of central genes: The figure shows TFs and miRNAs predicted/validated to regulate Phf5a and the central genes. On top of figure, miRNAs and TFs are indicated with blue and red circles, respectively. Arrows indicate a predicted/validated regulation of the central genes listed in the box at the bottom of the figure. Green squares indicate a regulation by either a miRNA or TF. The different experiments included in this study are also indicated to the right of the box: E-GEOD-13003 (EAC), E-GSE-40173 (MGL), E-GEOD-13319 (ULE) and E-TOXM-20 (UOV).
