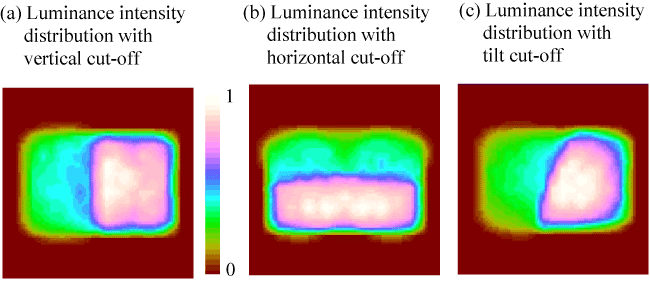

Figure 8: Simulated luminance intensity distributions generated by the lenses shown in Figure 7 for rectangular illumination with vertical, horizontal and tilt cut-off. a. Luminance intensity distribution with vertical cut-off. b. Luminance intensity distribution with horizontal cut-off. c. Luminance intensity distribution with tilt cut-off.
