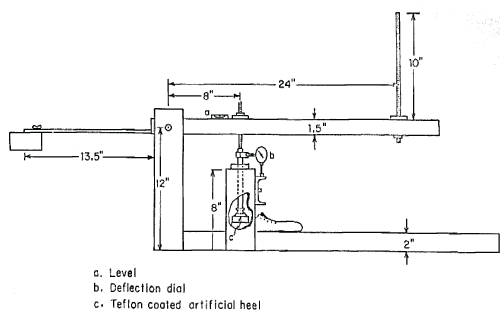

Figure 1: Scale drawing of the shoe compression machine. Steel weights are loaded on the 25 cm (10 inch) spindle at the end of the moment arm. Teflon artificial heel is ball-jointed to accommodate slope changes in the shoe. Deflection gauge is accurate within +/-1.0 mil. |
