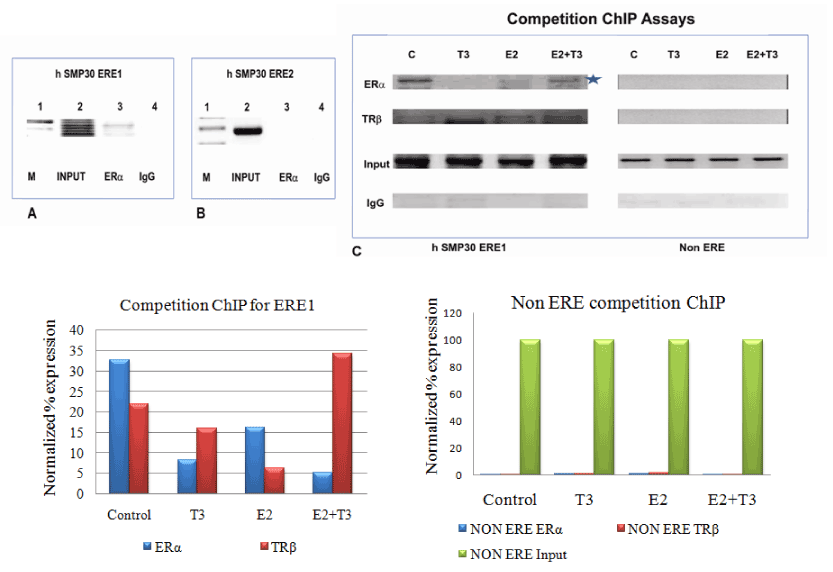

Figure 3: Recruitment/ Competition of TRß and ERa to SMP30 promoter after E2 or T3 treatment. (A,B) ERa binding to SMP30 promoter is affected by E2 treatment was shown in ChIP. (C) Recruitment/ Competition of TRß and ERa to SMP30 promoter after E2 or T3 treatment. Respective Band intensity was measured after subtracting the corresponding control (IgG) and normalized with respective positive control (Input).
